Jinan-1’s real-time QKD demo is a “practicality milestone,” not just a distance headline

22 Mar 2025 – A new Nature paper – and a companion Nature news story – highlights what might be the most “deployment-shaped” leap in satellite quantum key distribution (QKD) since the Micius era: Jinan‑1, a quantum microsatellite, has demonstrated real-time space-to-ground QKD using portable (~100 kg) optical ground stations, and then used that capability to enable one-time-pad encrypted image transmission between sites in China and South Africa separated by >12,900 km on Earth.

The core paper (Nature, Vol 640; online 19 Mar 2025) reports that the Jinan‑1 payload is ~22.7 kg (often summarized as “~23 kg”) and the complete satellite is 95.9 kg, a substantial downshift from the ~250 kg payload / 635 kg satellite scale associated with Micius-class missions. Instead of focusing on a single flagship satellite and a handful of massive observatories, the paper is framed around what a constellation-ready architecture might look like: lightweight space hardware, small ground terminals that can be deployed in urban rooftops in hours, and enough classical bandwidth to distill keys during the same pass rather than days later.

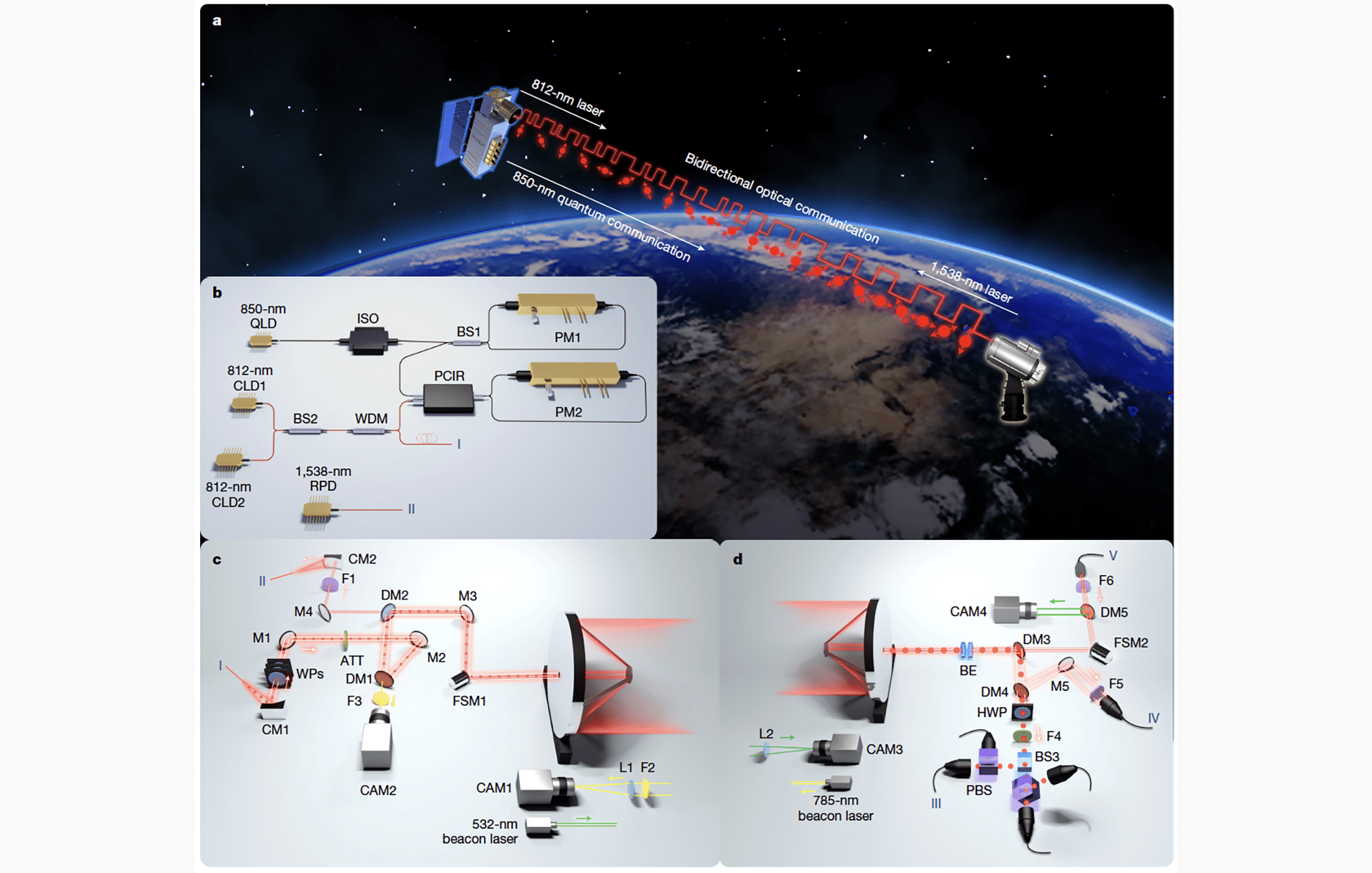

Technically, this is a prepare-and-measure QKD system: a decoy-state BB84 implementation using polarization encoding. The QKD light source is an 850 nm laser diode run at a 625 MHz pulse repetition rate, with external modulation to create signal/decoy/vacuum intensity states and BB84 polarization states. One of the paper’s underappreciated claims is security-relevant engineering: using a single laser diode and single-mode fiber output helps maintain uniformity across other degrees of freedom (space/time/frequency), reducing avenues for side-channel leakage compared to multi-laser designs.

To make the “real-time” piece work, the team multiplexes the quantum channel with bidirectional laser communications: an 812 nm downlink and a 1,538 nm uplink, using on–off keying at 156 Mbps and achieving about 104 Mbps effective throughput after protocol overhead. That bandwidth supports time synchronization (reported ~100 ps full-width at half-maximum) and the classical exchanges needed for sifting, error correction, privacy amplification, and authentication while the satellite is still in view.

The optical link budget is enabled by relatively modest apertures—200 mm on the satellite transmitter and 280 mm on the portable ground telescope—made workable via a tight 9–10 μrad divergence and microradian-class acquisition, pointing, and tracking (APT). The paper highlights APT simplification by using the satellite attitude control loop for coarse pointing and a fast steering mirror for fine pointing, reporting attitude-control errors around 280–350 μrad and final tracking precision down to ~0.55–1.6 μrad at the satellite (with ~3.3–4.0 μrad at the ground station).

On results, the authors provide a table of 20 orbits over 2022–2024. Secure key generation varies by pass geometry and conditions, but two anchors matter most for reporting: a representative early real-time urban run (Jinan, 25 Sep 2022) yielded 406,784 final secure bits; and the maximum reported final key yield is 1,071,104 bits in a single pass (Stellenbosch, 20 Oct 2024). In the paper’s end-to-end intercontinental demonstration, those keys are used to enable OTP encryption of two images: a 184,376-bit Great Wall image and a 186,856-bit Stellenbosch University image, with the two ground sites separated by >12,900 km on Earth.

Analysis

From my perspective, the most important story here is not the headline-grabbing “12,900 km” number—because that number is easy to misread. The quantum optical links between Jinan‑1 and each ground station are still “normal” satellite slant ranges over minutes-long passes. The real record is that the team made a trusted-relay satellite workflow operational enough to stitch together an intercontinental result while shrinking the hardware footprint dramatically.

That design choice – trusted relay – is where this paper sits in productive tension with the Micius narrative I previously covered. The Micius program was, in many ways, a showcase of “physics-first” milestones: satellite-enabled entanglement distribution over ~1,200 km, teleportation demonstrations, and early intercontinental quantum-secured conferencing. Jinan‑1 feels like the next turn of the crank: engineering for replicability and latency, with explicit improvements over Micius in payload mass, ground-station mass, and (critically) key distillation timeliness – from “days” to real time.

What I like about the paper is that it doesn’t oversell the trust model. The intercontinental demo is enabled by the satellite acting as a “space postman,” relaying keys between distant optical ground stations with reported latency on the order of ~1.5 hours (essentially constrained by orbital opportunities). That is a legitimate and useful architecture – especially for state or critical-infrastructure use cases where one can put the satellite in a high-assurance environment and treat it as part of the trusted computing base. But it is also an architectural constraint: if your threat model includes satellite compromise, then “quantum-secure” becomes conditional on classic systems security. In other words, this is not device-independent crypto arriving from orbit; it’s a powerful key-distribution mechanism whose assurances still depend on how the system is governed, built, and protected.

The comparison to my previous fiber record coverage captures why satellite and fiber advances are best seen as complementary rather than competing. The twin-field QKD world-record experiment achieved 1,002 km of optical fiber QKD without repeaters or trusted nodes – an impressive physics-and-engineering demonstration under extreme loss (156 dB) that still managed a non-zero secure key rate (0.0034 bits/s, per the PostQuantum.com writeup). Jinan‑1, by contrast, can generate hundreds of thousands to over a million secure bits per satellite pass – but only when the satellite is overhead and only within an architecture that, at least in this paper’s flagship intercontinental demonstration, relies on a trusted relay.

Practically, that means: ultra-long fiber QKD is a route to continuous terrestrial links with fewer trust assumptions (at the cost of brutal hardware complexity and tiny throughput at record distances), while microsatellite QKD is a route to burst-mode global reach, where key material can be delivered to widely separated places quickly, but governance and trust-of-infrastructure become central issues. I would not be surprised if the most robust future architectures blend both: fiber QKD (or TF-QKD) as regional “quantum backbones” plus microsatellite constellations as cross-border/cross-ocean key delivery and interconnect.

On China’s commitment to QKD, this paper is, in effect, evidence. It aggregates a large multi-institution team across Chinese research labs and industry and includes extensive national/provincial funding acknowledgements. And it is explicitly forward-looking: the conclusion frames this as groundwork for launching multiple microsatellites and building a “vast network” of optical ground stations toward a practical constellation.
